Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush
Isabella Urinal Kit: Single Stall Zip® Flush

Isabella Urinal Kit: Single Stall Zip® Flush

Please note: this item is stocked in:
- BRENDALE QLD 4500
- WETHERILL PARK NSW 2164
- EPPING VIC 3076
- WOODVILLE SOUTH SA 5011
- GNANGARA WA 6077

This item can also be supplied from our showroom in Coorparoo QLD 4151.
Please allow 24-48 hours for packing and shipping.

Includes:

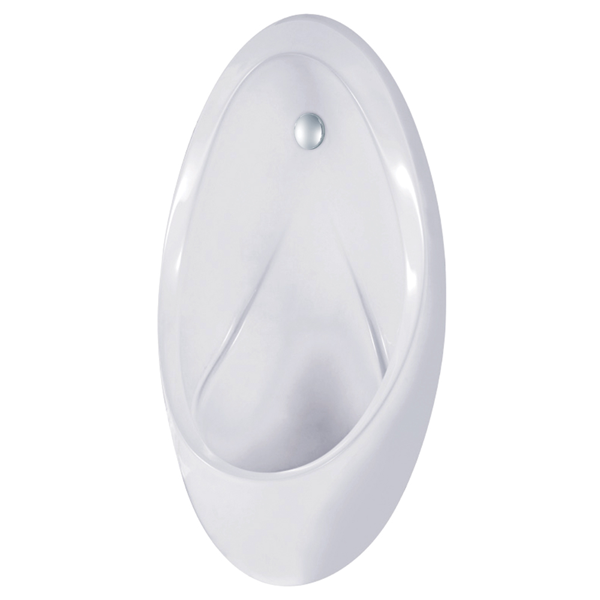

1 x Isabella Wall-Hung Urinal

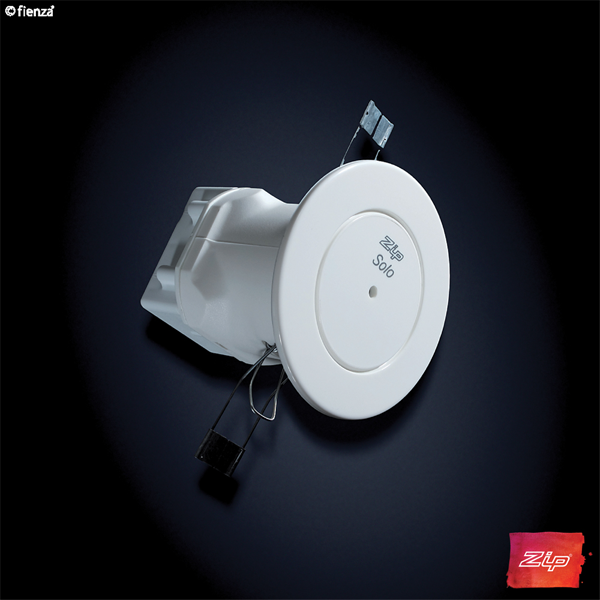

1 x Zip® FlushMaster® WS005 Ceiling Sensor & Solenoid Kit

Requires:
Zip® FlushMaster® Direct Injection Air Break Valve in water supply line. Available separately:
1″ BSP / 25mm • 99024
1.25″ BSP / 32mm • 99025
1.5″ BSP / 40mm • 99026

  • Single stall flushing system
  • Automatic & touch-free

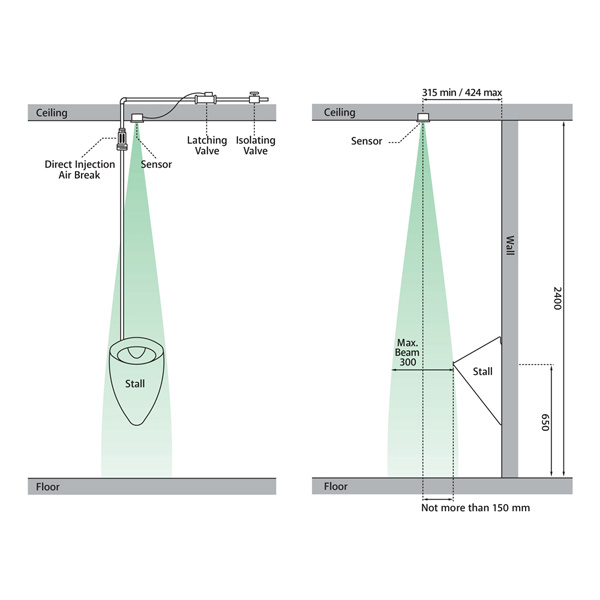

  • Compact 80mm ceiling-recessed infrared sensor
  • Narrow beam limits detection area to under 300mm wide
  • Five second sensor delay beats accidental tripping
  • Adjustable flush cycle to meet your needs precisely
  • Factory set for 12-hour janitor flush when unused

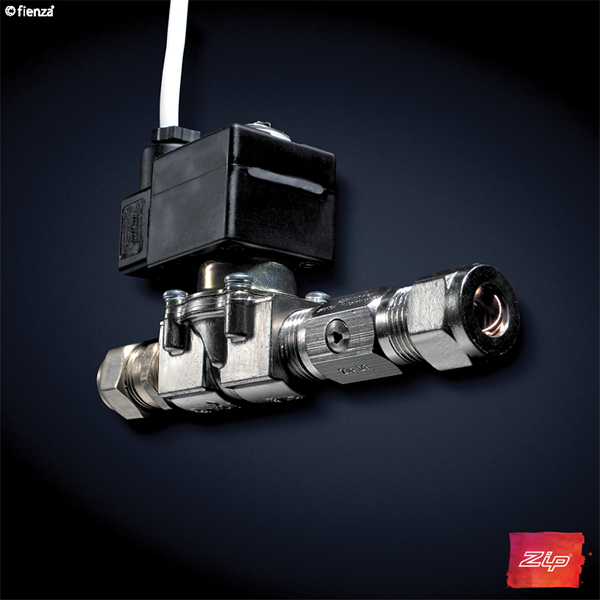

  • Solenoid latching valve supplied with connections
  • Power pack (240/6 volt) connects to 10-amp GPO

Ceiling sensor:
80mm diameter x 64mm cutout

Ceiling sensor:
80mm diameter x 64mm cutout

WELS 3 Star rated, 1.7L per flush per stall
WELS Registration: U00386
